Automatic Deployment Air Systems

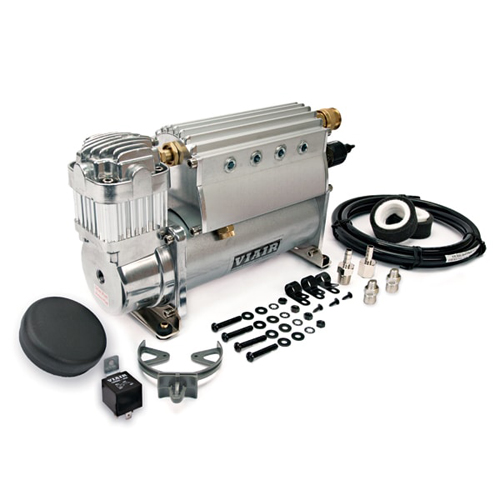

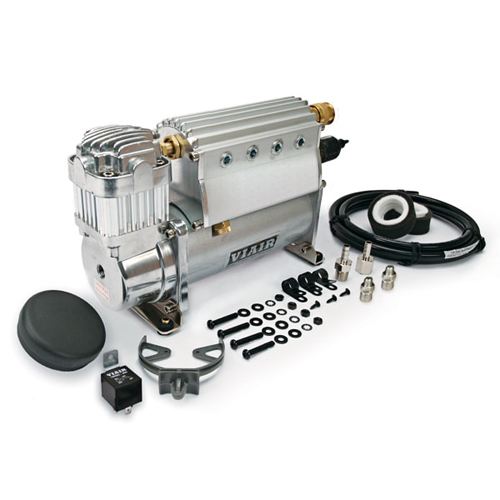

Heavy Duty (Base Model Kit)

VIAIR Corporation is proud to offer our new Automatic Deployment Air (ADA) Systems as a base model kit, delivering incredible performance in a compact space. VIAIR ADA Base Model Kits incorporate a 12-port extruded aluminum air tank to provide a compact a
Description
FEATURES SPECIFICATIONS
– 400C Compressor w/Thermal Overload Protector – 12-Volt
– Extruded Aluminum Air Tank (12-port) – Permanent Magnetic Motor
– Pre-installed Safety Valve – Duty Cycle: 33% @ 100 PSI
– Pre-installed 1/8” NPT Drain Cock – Max. Working Pressure: 150 PSI
– Pre-installed Safety Valve – Max. Amp Draw: 28 Amps
– Pre-installed 85/105 PSI Pressure Switch (P/N 42045) – Ingress Protection Rating: IP67
– Pre-installed 110/145 PSI Pressure Switch (P/N 42047) – Dimensions: 9″L x 4″W x 6.75″H
– (8) Pre-installed 1/4” NPT Recessed Port Plugs – Net Weight: 10 lbs.
– Pre-installed Quick Connect Coupler
– 40-amp Relay
– (2) 1/4” NPT to 1/8” BSP Adapters
– 1” NPT M Barbed Fitting for 1/4” Air Line
– 1” NPT F Barbed Fitting for 1/4” Air Line
 – Coiled Air Line (For Remote Mount Air Filter Installation)
 – Air Filter Housing
– (2) Replacement Air Filter Elements
 – Mounting Hardware



PERFORMANCE DATA

PSI CFM A BAR LPM A
0 2.62 15 0 74 16
10 2.39 18 1.0 65 20
20 2.21 20 2.0 60 23
30 2.11 22 3.0 56 25
40 2.01 24 4.0 53 27
50 1.93 25 5.0 49 28
60 1.84 26 6.0 46 28
70 1.73 27 7.0 42 28
80 1.65 27 8.0 38 28
90 1.52 27 9.0 35 27
100 1.45 27 10.0 31 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts
