Model |
Flow |
Tank |
Pressure |
Power |
Voltage |
Noise |
Weight |
Size |
|
|
|
L/Min |
L |
Bar |
Kw |
Volts/Hz |
dB(A) |
KG |
CM-hxwxd |
|
|

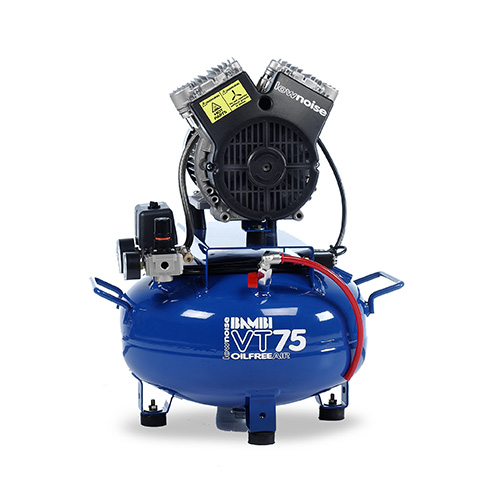

VT75 |
120 |
24 |
8 |
0.55 |
220-240/50 |
72 |
29 |
63x51x41 |
|
| VTH75 | 120 | 24 | 8 | 0.55 | 220-240/50 | 72 | 32 | 62x68x28 | |

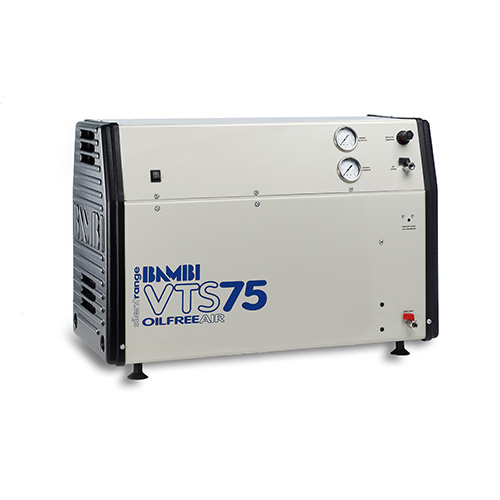

| VTS75 | 120 | 23 | 8 | 0.55 | 220-240/50 | 54 | 64 | 65x93x48 | |
|
|
|||||||||
|
FAD |
1 Bar |
2 Bar |
3 Bar |
4 Bar |
5 Bar |
6 Bar |
7 Bar |
8 Bar |
|
|
L/Min |
108 |
96 |
85 |
74 |
65 |
57 |
48 |
45 |
|
Air Compressor With Dryer Version (Absorption dryer) |
|||||||||
| Model | Fole | Tank | Pressure | Dew point | Power | Voltage | Noise | Weight | Size |

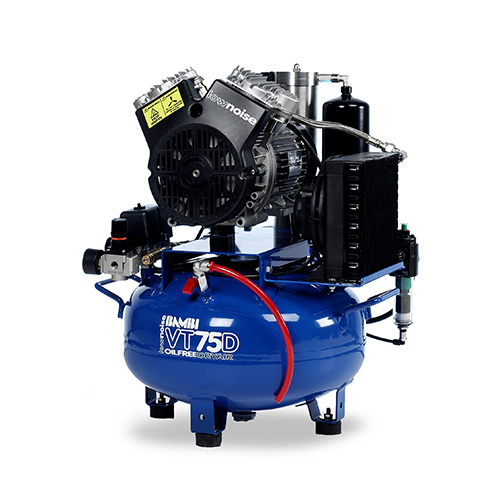

| VT75D | 105 | 24 | 8 | -40℃ | 0.55 | 220-240/50 | 72 | 40 | 64x52x49 |
| VTH75D | 105 | 24 | 8 | -40℃ | 0.55 | 220-240/50 | 72 | 43 | 63x68x40 |

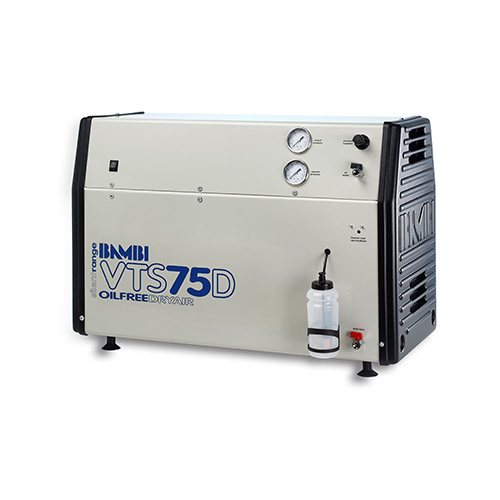

| VTS75D | 105 | 23 | 8 | -40℃ | 0.55 | 220-240/50 | 54 | 71 | 65x93x48 |
| FAD | 1 Bar | 2 Bar | 3 Bar | 4 Bar | 5 Bar | 6 Bar | 7 Bar | 8 Bar | |
| L/Min | 97 | 86 | 76 | 66 | 58 | 51 | 43 | 40 | |
-40°c dew point, 50% duty cycle
These models require 20 amps of single-phase power
Standard version internal coated gas storage tank
Pressure control valve output
With soft start valve
Minimal maintenance
Run time ultra low noise
Compact and ready to use
British manufacturing
All models available in unidirectional 110V or three-phase 380/415v are available on request
Stainless steel gas storage tank, dew point -70℃ adsorption dryer, dew point -20℃ film dryer should be provided on request
Packed with novel technical features, even the standard models without air dryers are fitted with a “soft start” solenoid valve. This discharges the air pressure in the pump whenever the power is disconnected, protecting the compressor from overload and extending the service life. Anti corrosion, internally coated air receivers are fitted across the range ensuring the air is contamination free.
VTS Range, the perfect compressor for laboratories, food industry, drink dispensing, dental surgeries, medical equipment and all other clean-air critical applications.
