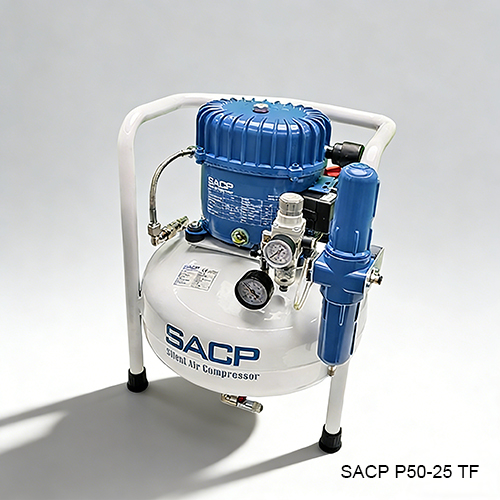

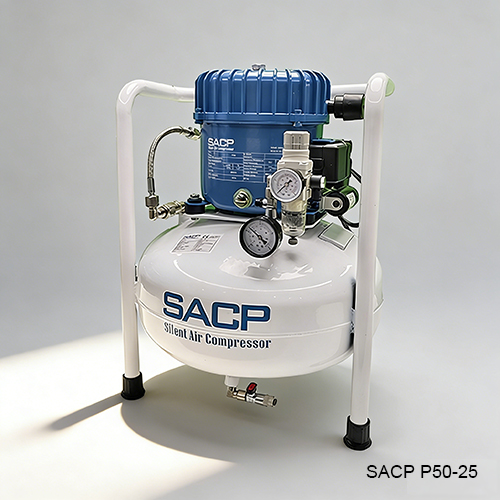

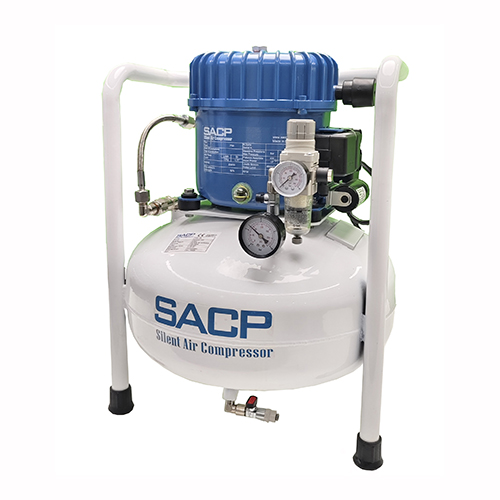

P50-25 ultra-quiet low oil lubrication air compressor

Let silence become the standard and drive the future with technology. SACP P50 - designed for the ultimate quiet and clean air source.

1. Revolutionary horizontal piston technology, achieving both quietness and energy efficiency​

The P50 series adopts a unique transverse single-piston connecting rod structure, which significantly reduces mechanical vibration and noise by optimizing the motion trajectory. Compared with traditional air compressors, its vibration amplitude is reduced by 30%, and its operating noise is only 40dB(A), which is comparable to the ambient sound level of a library. It can be seamlessly integrated into laboratories, dental clinics and other places that are extremely sensitive to noise.


2. Food grade fully synthetic lubricant, double guarantee of environmental protection and cleanliness​

In order to meet strict hygiene standards, P50 is equipped with food-grade fully synthetic lubricants, which not only greatly reduces the "oil odor" in compressed air, but also reduces oil consumption to 1/2 of standard pump heads through a special air intake structure.
This design not only reduces the risk of lubricant contamination of terminal equipment, but also complies with the EU RoHS environmental directive and is suitable for health-sensitive fields such as food processing and pharmaceutical research and development.

3. European industrial-grade quality, with equal emphasis on durability and safety​

Stainless steel gas storage tank: Made of SUS304 stainless steel, it has strong corrosion resistance and supports long-term stable gas supply.
Intelligent filtration system: Standard 10 micron precision filter and outlet pressure regulator ensure that air quality meets ISO 8573-1 standards.
Multiple safety certifications: The entire machine has passed CE and RoHS certifications, and the core components use Swedish SKF bearings to ensure the reliability of the equipment under extreme working conditions.


4. Humanized design, adaptable to diverse scenarios​

Compact layout: Optimized structural design reduces floor space and supports embedded installation or mobile deployment.
Low maintenance requirements: Only basic maintenance is required once a year, significantly reducing operating costs.
Wide pressure adjustment: The outlet pressure adjustable range covers 1.0-8.0Bar, meeting the diverse needs from precision instruments to industrial pneumatic systems.

5. The parameters of P50-4 compressor are as follows:

Model	P50-25	P50-25 TF	P50-25 M
Dryer	无	无	吸附式
Silent box	无	无	无
Voltage                          volt/Hz	230V 50/60 110V 50/60	230V 50/60 110V 50/60	230V 50/60 110V 50/60
PDP                              ℃	X	X	-20
Filter Accuracy              um	40	0.01	0.01
Residual oil amount      mg/m³	X	≤0.003	≤0.003
Power                           kw	0.34	0.34	0.34
Tank                             l	25	25	25
Flow@5 bar                  l/min	36	36	36
Max Pressure               bar	8	8	8
Duty Cycle	S3-50%	S3-50%	S3-50%
Noise                            dB(A)	40	40	40
Weight                          kg	28	28.5	31
Size         wxdxh           cm	40x40x52	40x40x52	40x50x52
