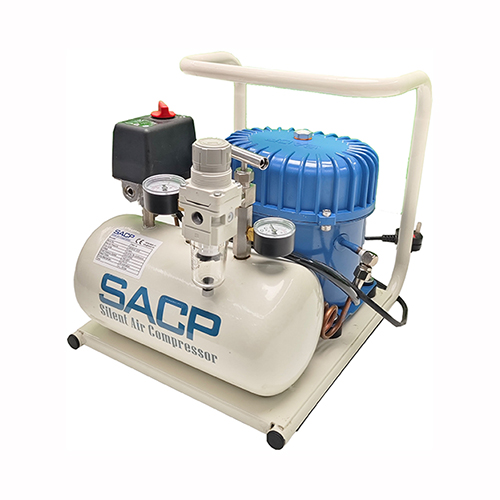

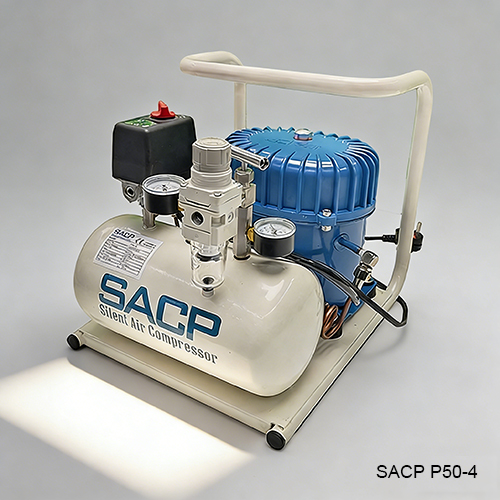

P50-4 ultra-quiet low-oil lubricated air compressor
P50-4 ultra-quiet low-oil lubrication air compressor is a small air compressor with the latest suction technology, which can ensure that the compressor piston is fully lubricated at the same time, and can reduce the suction oil, the application of new technology makes the oil consumption of the P50 series compressor only 1/2 of the standard product, effectively increasing the maintenance time of the oil lubrication pump, and the oil content in the compressed air is also greatly reduced, which is more friendly to the application environment that needs to be quiet, low vibration and no oil smell.
1. Revolutionary horizontal piston technology, achieving both quietness and energy efficiency
The P50 series adopts a unique transverse single-piston connecting rod structure, which significantly reduces mechanical vibration and noise by optimizing the motion trajectory. Compared with traditional air compressors, its vibration amplitude is reduced by 30%, and its operating noise is only 40dB(A), which is comparable to the ambient sound level of a library. It can be seamlessly integrated into laboratories, dental clinics and other places that are extremely sensitive to noise.
2. Food grade fully synthetic lubricant, double guarantee of environmental protection and cleanliness
In order to meet strict hygiene standards, P50 is equipped with food-grade fully synthetic lubricants, which not only greatly reduces the "oil odor" in compressed air, but also reduces oil consumption to 1/2 of standard pump heads through a special air intake structure.
This design not only reduces the risk of lubricant contamination of terminal equipment, but also complies with the EU RoHS environmental directive and is suitable for health-sensitive fields such as food processing and pharmaceutical research and development.
3. European industrial-grade quality, with equal emphasis on durability and safety
Stainless steel gas storage tank: Made of SUS304 stainless steel, it has strong corrosion resistance and supports long-term stable gas supply.
Intelligent filtration system: Standard 10 micron precision filter and outlet pressure regulator ensure that air quality meets ISO 8573-1 standards.
Multiple safety certifications: The entire machine has passed CE and RoHS certifications, and the core components use Swedish SKF bearings to ensure the reliability of the equipment under extreme working conditions.
4. Humanized design, adaptable to diverse scenarios
Compact layout: Optimized structural design reduces floor space and supports embedded installation or mobile deployment.
Low maintenance requirements: Only basic maintenance is required once a year, significantly reducing operating costs.
Wide pressure adjustment: The outlet pressure adjustable range covers 1.0-8.0Bar, meeting the diverse needs from precision instruments to industrial pneumatic systems.
5. The parameters of P50-4 compressor are as follows:
| Model |
P50-4 |
P50-4 TF |
P50-4 M |
| Dryer |
N/A |
N/A |
Adsorption |
| Silent Box |
N/A |
N/A |
N/A |
| Voltage volt/Hz |
230V 50/60
110V 50/60 |
230V 50/60
110V 50/60 |
230V 50/60
110V 50/60 |
| PDP ℃ |
X |
X |
-20 |
| Filter accuracy um |
40 |
0.01 |
0.01 |
| Residual oil volume mg/m³ |
X |
≤0.003 |
≤0.003 |
| Power kw |
0.34 |
0.34 |
0.34 |
| Tank l |
4 |
4 |
4 |
| Air flow@5 bar l/min |
36 |
36 |
36 |
| Max Pressure bar |
8 |
8 |
8 |
| Duty Cycle |
S3-50% |
S3-50% |
S3-50% |
| Noise dB(A) |
40 |
40 |
40 |
| Weight kg |
22.5 |
23.5 |
28 |
| Size wxhxd cm |
37x31x33 |
37x31x33 |
40x33x39 |
For more information, please refer to the following link:
P50-4 ultra-quiet low-oil lubricated air compressor
